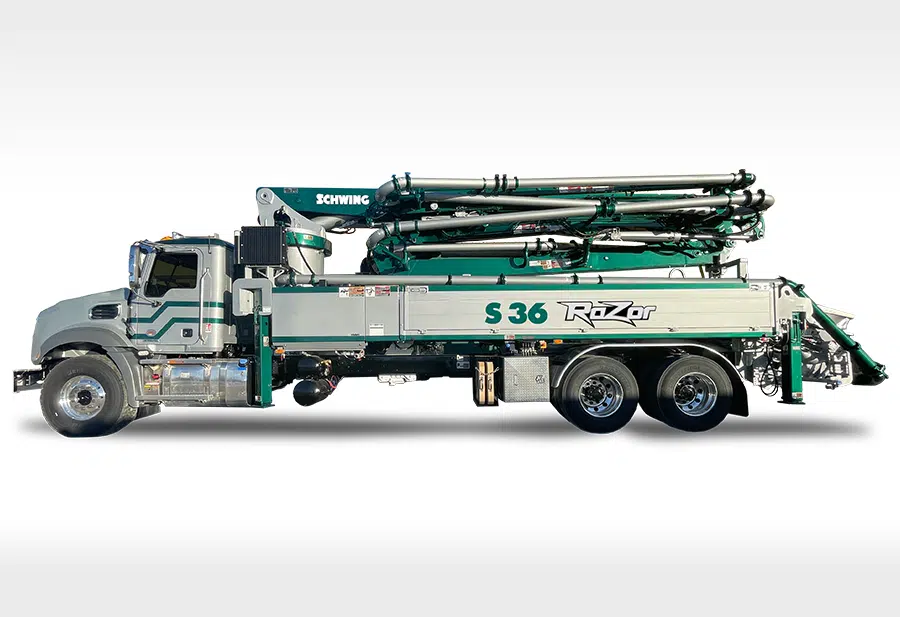

Truck-Mounted concrete pump with 5-section placing boom, Full Articulation, Z-Fold
|
|
|
U.S. |
| Vertical Reach |
115′ 3″ |
| Horizontal Reach |
101′ 1″ |
| Slewing Range |
730 degrees (365 left & 365 right) |
| Design |
5 Section Full Articulation, Z-Fold |
| Section Lengths |
| Main Section |
25′ 11″ |
| Second Section |
20′ |
| Third Section |
19′ |
| Fourth Section |
18′ 5″ |
| Tip Section |
18′ 9″ |
| Minimum Unfolding Height |
22′ 4″ |
| Boom Section Working Range |
| Main Section |
96 degrees |
| Second Section |
185 degrees |
| Third Section |
185 degrees |
| Fourth Section |
233 degrees |
| Tip Section |
230 degrees |
| Boom Pipeline |
125mm, Super 3000, Metric Ends |
| Deck Pipeline |
125mm, Super 3000, Metric Ends |
| Boom End Hose |
12′ Coupled One End – 2940 PSI |
| Pipeline Clamp Size |
5-1/2″ raised end |
Outriggers
|
| Design |
X Outriggers, Fully Hydraulic, Extension and Jacking |
| Outrigger Spread |
| Front (side to side) |
20′ 5″ |
| Rear (side to side) |
18′ 8″ |
| Length |
28′ 1″ |
| Max. Outrigger Load |
| Front |
42,714 lbs. |
| Rear |
33,721 lbs. |
| Outrigger Footplate Dimensions |
| Front |
11.8″ x 9.5″ |
| Rear |
11.8″ x 9.5″. |
| Max. Outrigger Soil Pressure |
| Front |
419 psi (w/o Dunnage) 76 psi w/Dunnage) |
| Rear |
331 psi (w/o Dunnage) 60 psi (w/Dunnage) |
