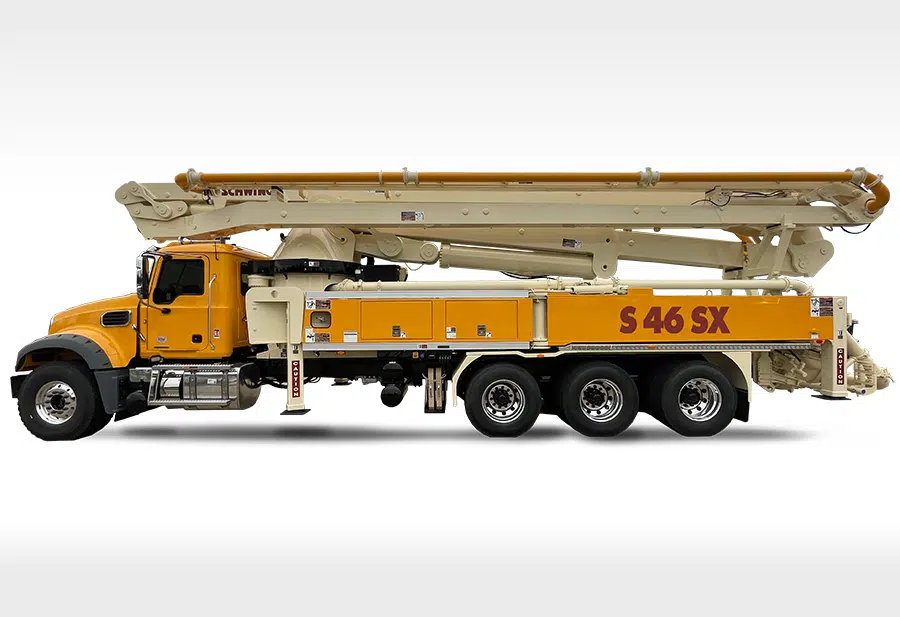

Truck Mounted Concrete Pump With 5-Section Placing Boom
|
|
U.S. |
Metric |
| Vertical Reach |
149′ 7″ |
45.6 m |
| Horizontal Reach |
136′ 10″ |
41.7 m |
| Below Grade Reach w/ Tip Hose |
111′ |
33.8 m |
| Pipeline Diameter |
5 in |
125 mm |
| Boom Type / Sections |
Overhead Roll & Fold®/ 4 |
| Boom Rotation |
370 degrees |
| Unfolding Height |
39′ 6″ |
12 m |
| Outrigger Type – Front |
Super X Outriggers,
Hydraulic Slewing & Jacking |
| Outrigger Type – Rear |
Hydraulic Slewing & Jacking |
| Outrigger Soil Pressure w/o Dunnage (front/rear) |
367/353 psi |
25.3/24.3 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) |
104/100 psi |
7.2/6.9 bar |
| Outrigger Width – Front |
27′ 3″ |
8.3 m |
| Outrigger Width – Rear |
27′ 3″ |
8.3 m |
| Outrigger Length |
29 ft |
8.8 m |
