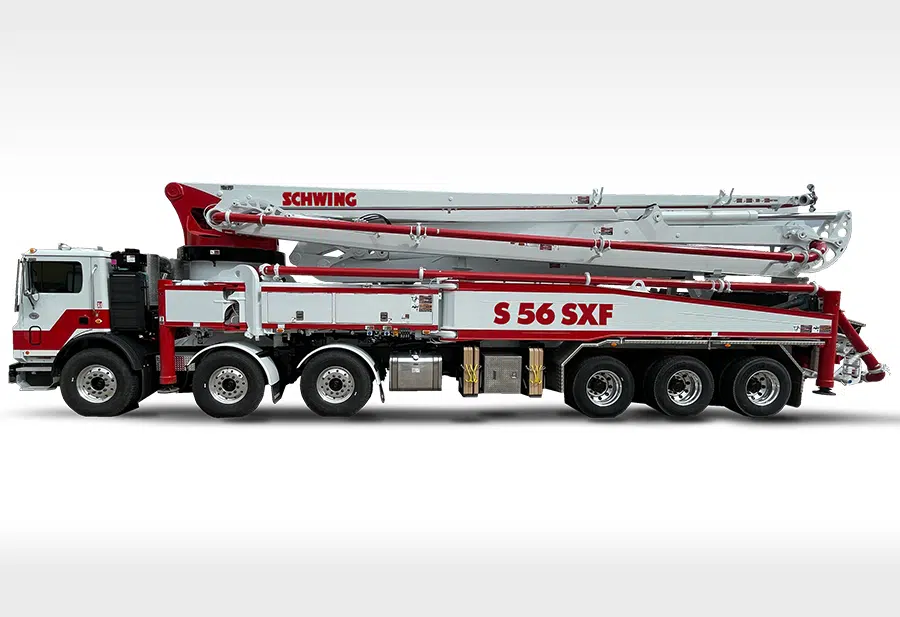

Truck-Mounted concrete pump with 5-section “Roll and Fold” placing boom, Full Articulation
|
|
|
U.S. |
| Vertical Reach |
181′ 1″ |
| Horizontal Reach |
164′ |
| Slewing Range |
730 degrees (365 left & 365 right) |
| Design |
Five Section Roll & Fold Boom |
| Section Lengths |
| Main Section |
38′ 4″ |
| Second Section |
31′ 7″ |
| Third Section |
29′ 9″ |
| Fourth Section |
33′ 6″ |
| Tip Section |
33′ 1″ |
| Minimum Unfolding Height |
37′ 9″ |
| Boom Section Working Range |
| Main Section |
95 degrees |
| Second Section |
185 degrees |
| Third Section |
185 degrees |
| Fourth Section |
185 degrees |
| Tip Section |
210 degrees |
| Boom Pipeline |
125mm, Super 3000, Metric Ends |
| Deck Pipeline |
125mm, Super 3000, Metric Ends |
| Boom End Hose |
10′ Coupled One End – 2940 PSI |
| Pipeline Clamp Size |
5-1/2″ raised end |
Outriggers
|
| Design |
Super X Outriggers, Fully Hydraulic |
| Outrigger Spread |
| Front (side to side) |
32′ 1″ |
| Rear (side to side) |
38′ 6″ |
| Length |
33′ 10″ |
| Max. Outrigger Load |
| Front |
78,700 lbs. |
| Rear |
69,700 lbs. |
| Outrigger Footplate Dimensions |
| Front |
Ø11.8″ |
| Rear |
Ø11.8″. |
| Max. Outrigger Soil Pressure |
| Front |
722 psi (w/o Dunnage) 127 psi w/Dunnage) |
| Rear |
504 psi (w/o Dunnage) 112 psi (w/Dunnage) |
