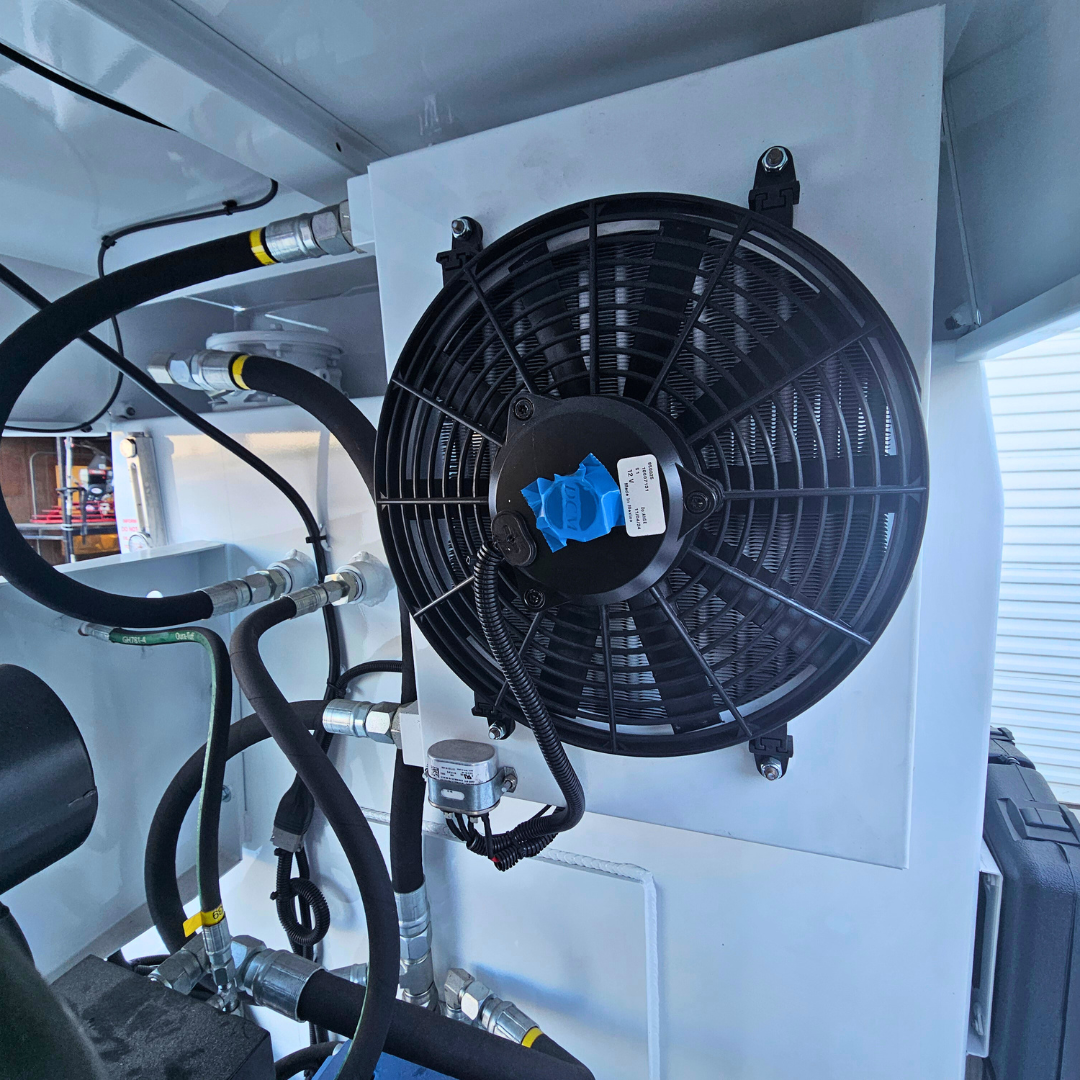

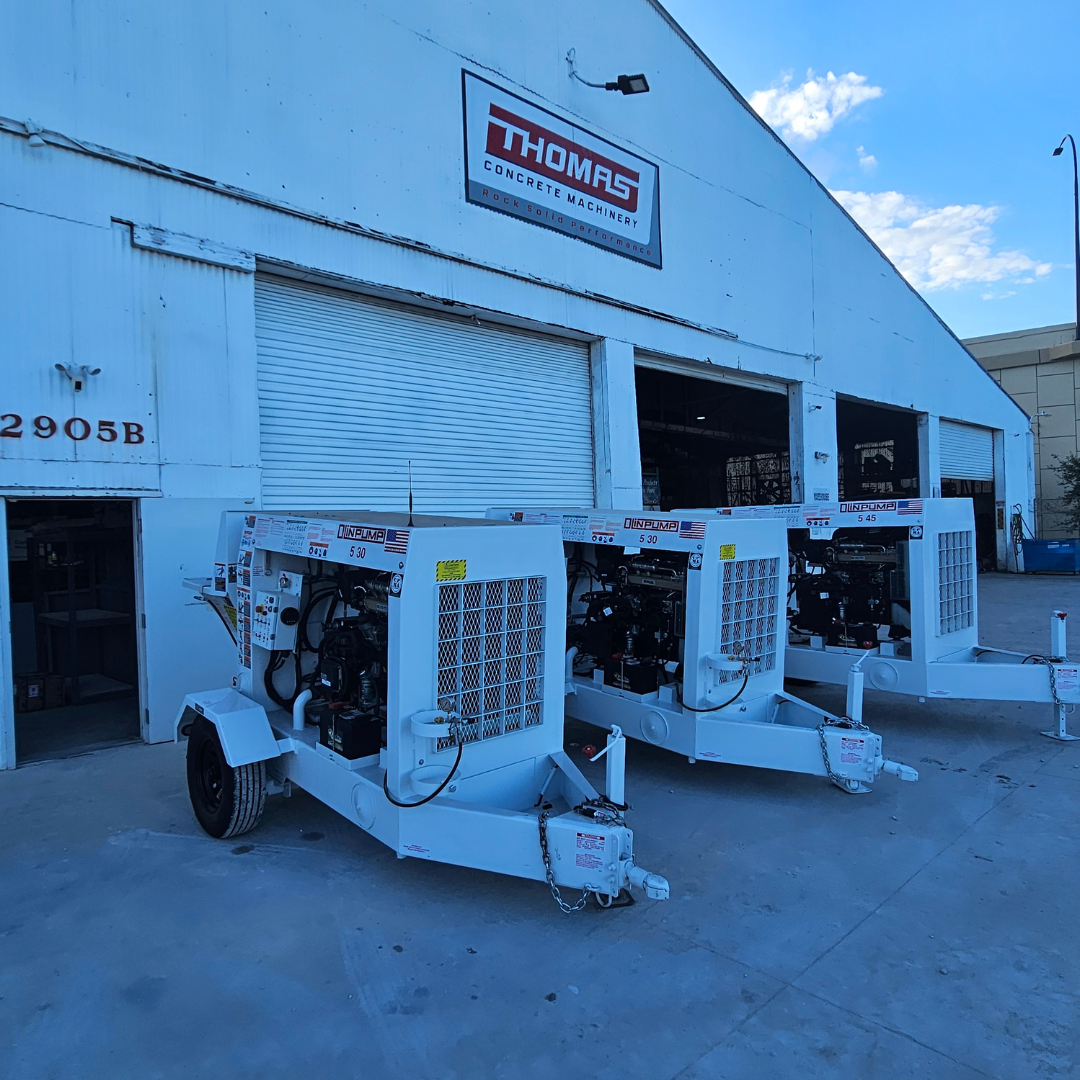

The OLINPUMP 5 30 is the more powerful version of the 5 25 with an oil cooler added. Combine that with the low volumetric displacement of the cylinders, and you have a lean mix, low slump tolerant machine, making it ideal for shotcreting, long pushes, and larger jobs.
The OLINPUMP 5 30 is the more powerful version of the 5 25 with oil cooler added. Combine that with the low volumetric displacement of the cylinders and you have a lean mix, low slump tolerant machine, making it ideal for shotcreting, long pushes and larger jobs.
| Maximum Output | 40 cyh | 30 cmh |
| Delivery Pressure | 900 psi | 62 bar |
| Delivery Cylinder | 5 in | 127 mm |
| Stroke | 12 in | 305 mm |
| Strokes/Minute | 133 | |

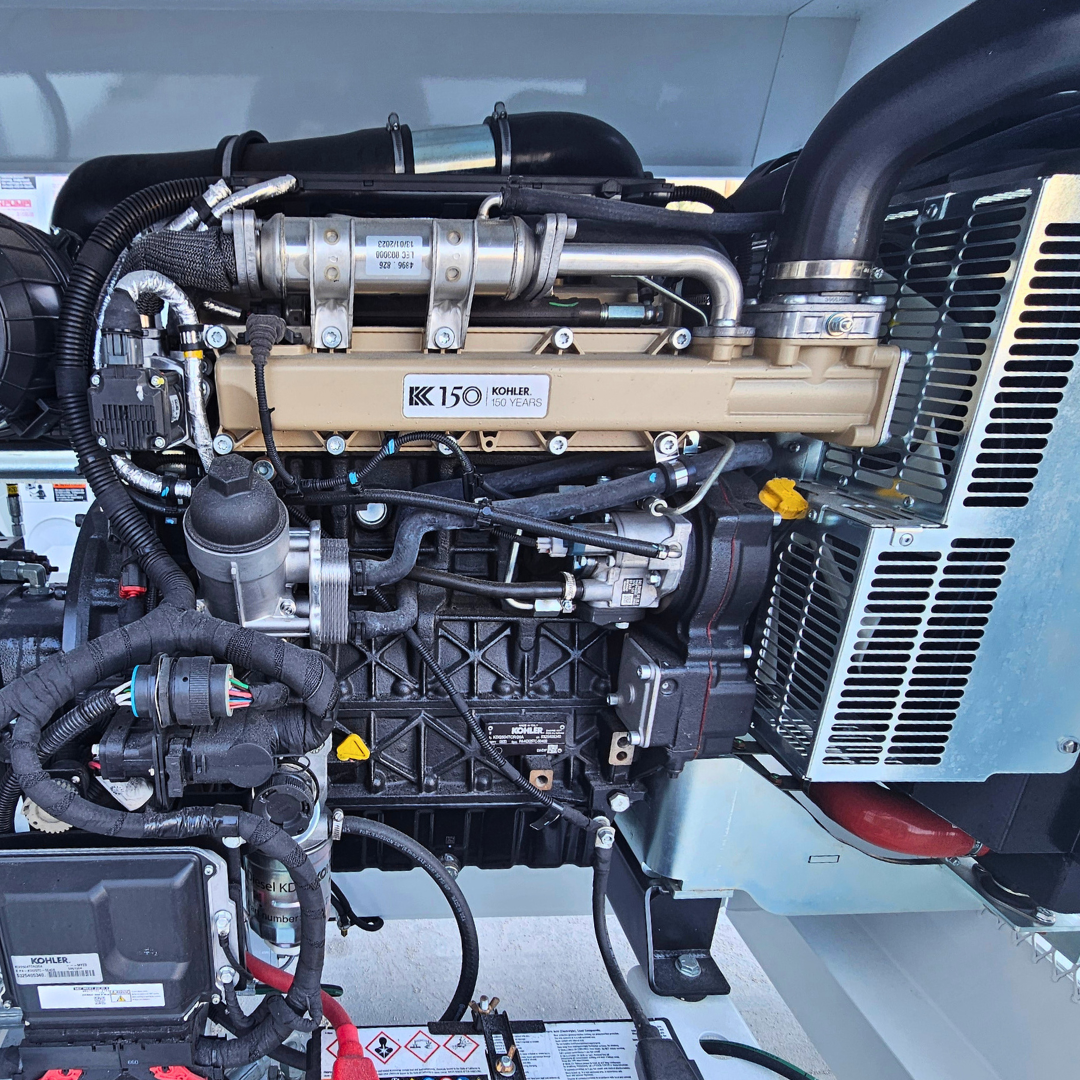

| Engine Power | 65 hp | 48 kW |

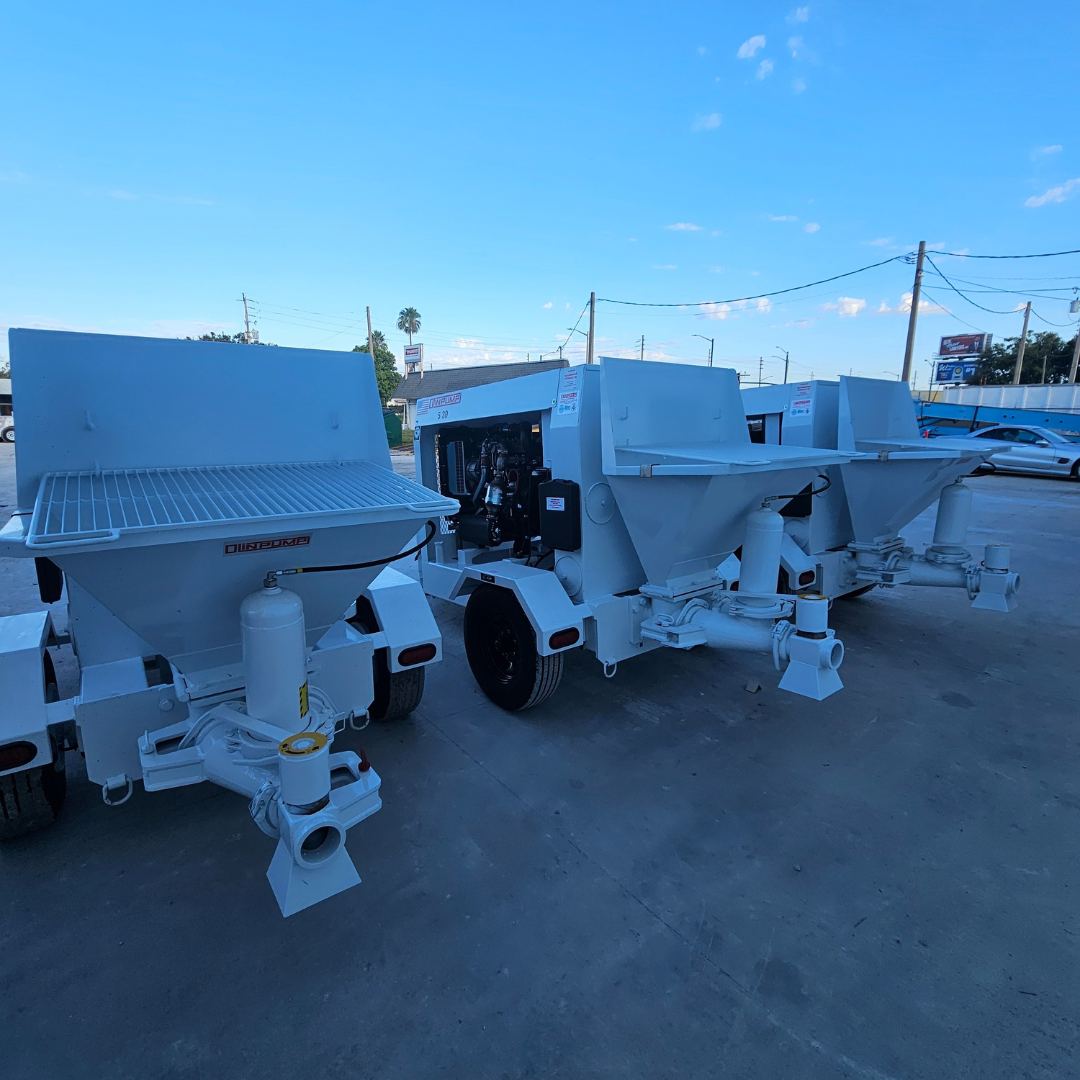

| Hopper Capacity | 6 cu ft | .17 cu mtr |

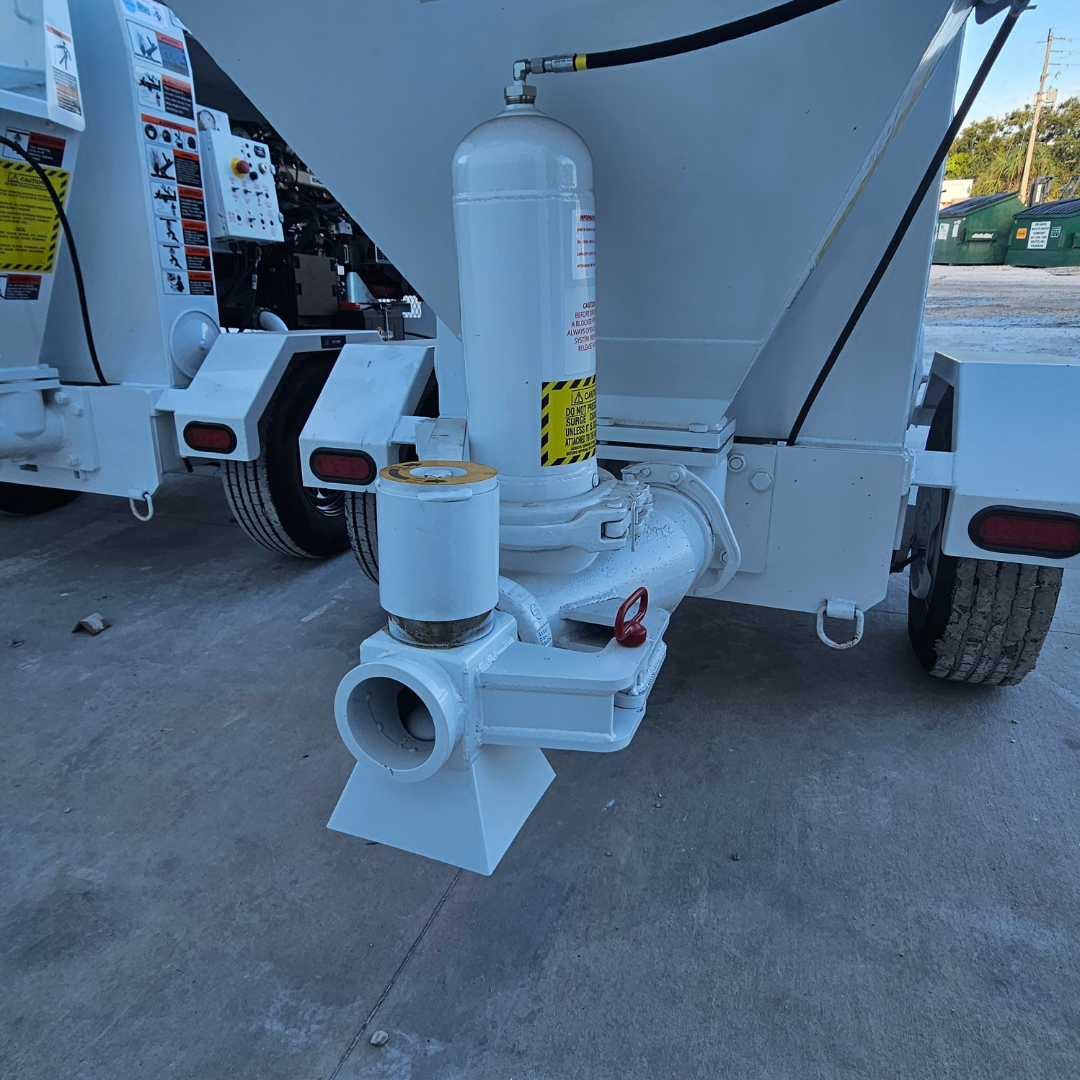

| outlet | 4 in | 100 mm |

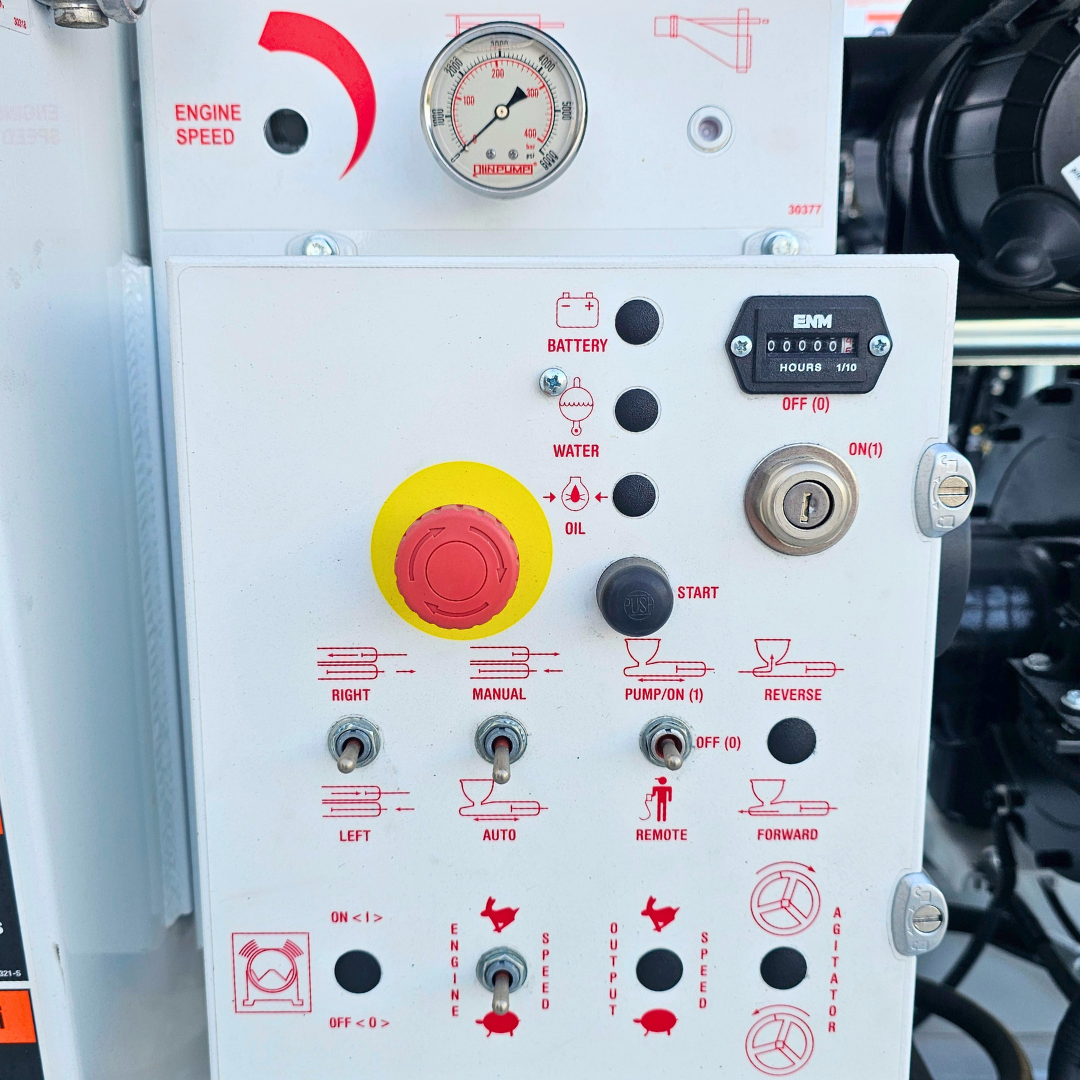

| Control System | Electric/Hydraulic | |
| Hydraulic Capacity | 6 cu ft | .17 cu mtr |
| Weight | 4300 lbs | 2004 kg |
| Length | 163 in | 414 cm |
| Width | 70 in | 178 cm |
| Height | 82 in | 208 cn |
