Description

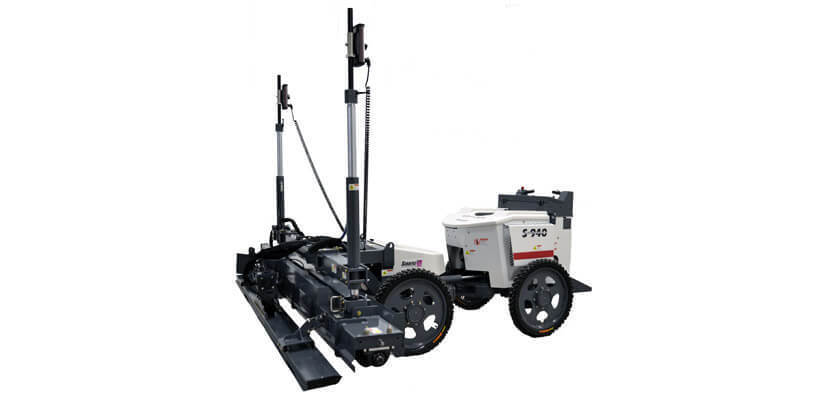

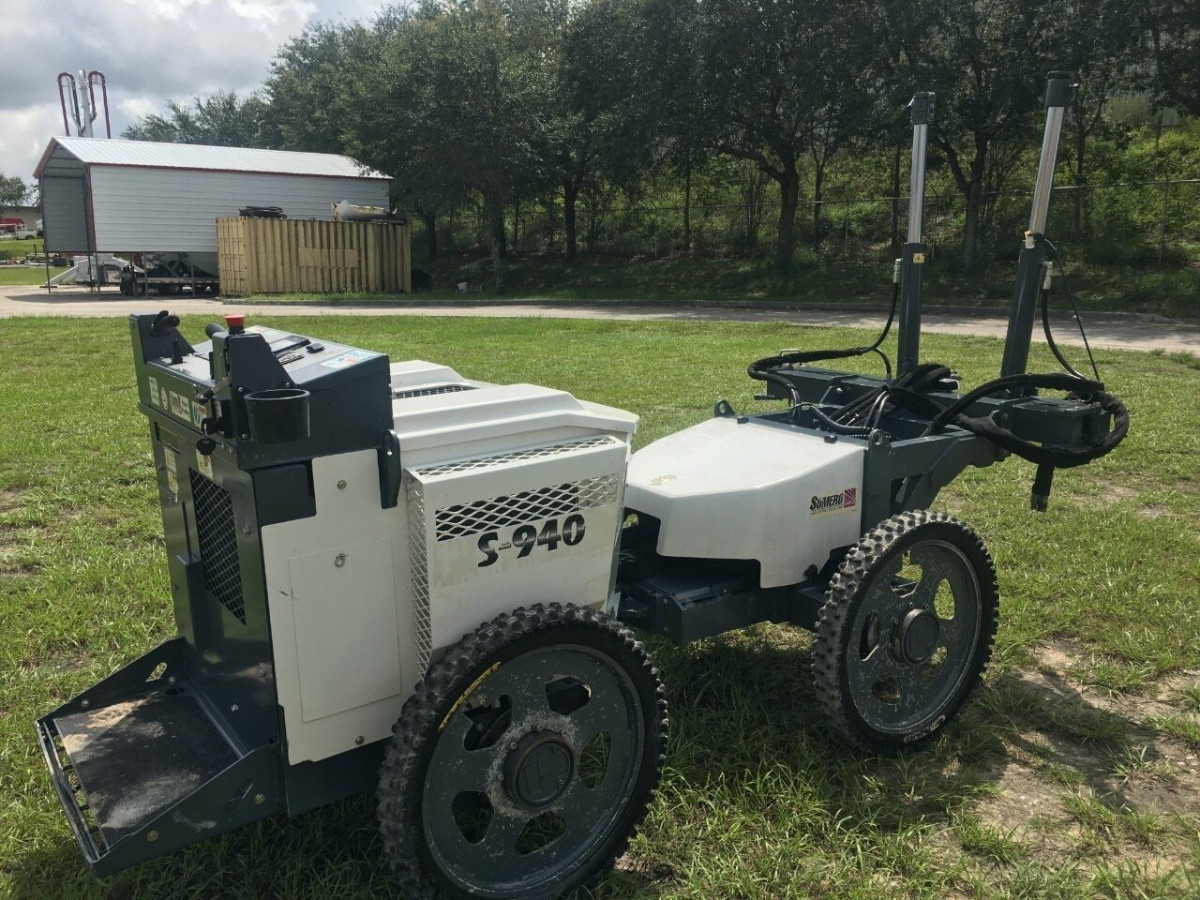

The S-940 provides unmatched versatility and simplicity with increased power and productivity! Available with a fully automated self-leveling screed head, raking/fine grade head, this powerful machine has fewer switches and an easy-access hinged console, making any job comfortable for your operator.
It has a foldable elevation beam that provides a narrower profile during transport with the added benefit of providing easy entry to jobsites. The off-set screed head provides less of an overlap per pass. With the option of a powerful diesel engine, this model is unstoppable.
Specifications
FEATURES/BENEFITS:
> Improved floor quality
> Increased profitability
> Somero® Quick GradeSet System™
> Auger Screed Head can screed on Chaired Mesh, Chaired Rebar,Heat Tubes, some slab-on-deck and more.
> Raking/Fine Grade Head for raking concrete, finish grading orspreading material (sand, stone, etc.).
> Auto valve calibration for consistent, unsurpassed performance
> Rotating head dollies optional
> Works well with slump as low as 3 ½” / 8.9 cm
> On-site training available
> Compatible with the 3-D Profiler System®
> OASIS Laser Control System
> Column-Block Protection
SPECIFICATIONS:
WEIGHT – 1,775 lbs / 805 kg (with diesel engine)
WIDTH – 4’9” / 1.5 m (transport mode)
HEIGHT – 5’ / 1.5 m (without masts)
LENGTH – 10’6” / 3.2 m (transport mode)
ENGINE STANDARD OPTIONAL – Diesel 24.8 HP / 18 kW Kubota DH902
22 HP / 16 kW Honda Gx690
SELF-PROPELLED – 4-Wheel Drive w/ Hydraulic Motors
RAKING/GRADING LEVEL OPTIONAL – 9’ / 2.7 m
SCREED HEAD WIDTH – 11’ / 3 m
VIBRATOR WIDTH – 120”
OPTIONS:
– Rotating Head Dolly
– High Float Tires
– Spare Hose Kit
– Hydraulic Fittings Kit
– Tripod Kit
– Column Clamp
– Spare Tire / Wheel Assy
– Spare Auger Kit
