SCHWING SP 750-HP VPC

SCHWING SP 750-HP VPC

$154,230.00

Product Description

Description

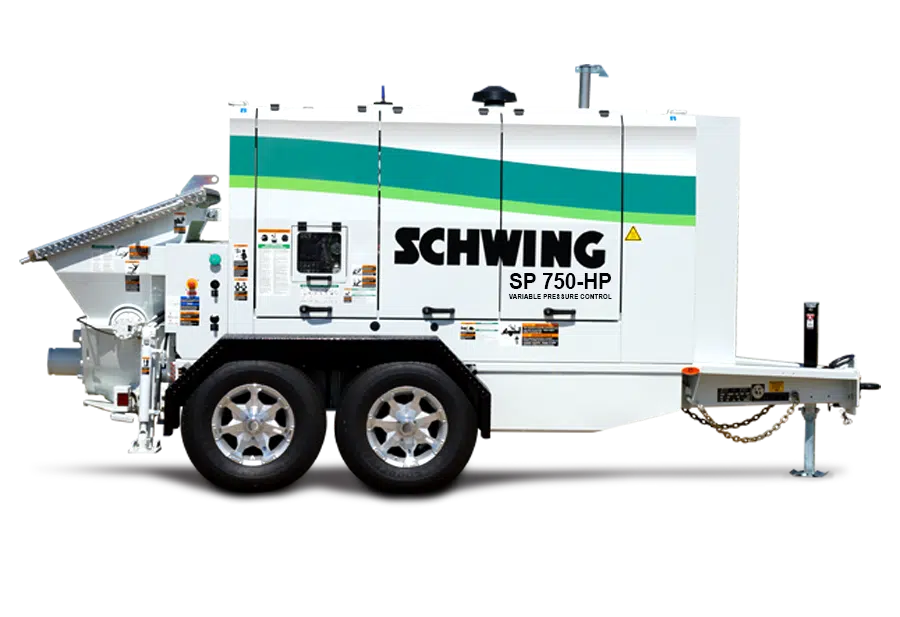

The SCHWING SP 750-HP VPC is a high-pressure stationary concrete pump built for contractors who need reliable performance, strong output, and consistent pumping power on demanding jobsites. With up to 50 cubic yards per hour of concrete output and a maximum concrete pressure of 1,450 psi, this pump is designed to handle tough placement applications while maintaining SCHWING’s reputation for durability and long-term dependability.

Equipped with SCHWING’s Long Rock™ valve, open-loop hydraulic system, and a powerful CAT® C3.6 Stage V diesel engine, the SP 750-HP VPC delivers the strength and control needed for a wide range of concrete pumping projects. Its trailer-mounted design, tandem axle setup, and 5-inch outlet make it a practical choice for contractors looking for a versatile pump that can keep up with daily jobsite demands.

Specifications



U.S. Metric
Concrete Output Per Hour 50 cu yds 38 cu m
Maximum Pressure on Concrete 1450 psi 100 bar
Maximum Aggregate Size 1.5 in 38.1 mm
Concrete Cylinder Diameter 6 in 150 mm
Concrete Cylinder Stroke Length 39 in 1000 mm
Differential Piston/Rod Diameter 3.15/ 1.96 in 80/ 50 mm
Outlet Diameter 5 in 125 mm
Concrete Valve Type Long Rock™
Shifting Cylinders 2
Max. Pump Strokes Per Minute 35
Volume Control 0 to Maximum
Hydraulic System Open Loop
Main Hydraulic Pump A11V095
Hydraulic Pressure 3872 psi 267 bar
Hydraulic Tank Capacity 112 gal 424 l
Engine Model – Diesel Tier 4 F CAT® C3.6 Stage V
Engine Power 120 hp 89 kw
Fuel Tank Capacity 39 gal 148 l
Hopper Capacity 13 cu ft .38 cu m
Hopper-Height 51 in 1292 mm
Axle Tandem Standard
Axle Capacity Rating 11000 lbs 4990 kg
Tandem Axle Tires ST 235/80 R16 (std.)
Brakes Electric
Outrigger Legs Manual Standard
Length 197 in 4997 mm
Width 76 in 1929 mm
Height 102 in 2590 mm
Units Weight (Tier 4) 8750 lbs 3969 kg
Dual Weight N/A N/A
Remote Control Cable 100 ft 30.5 m
*Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice
