Specifications
https://youtu.be/t2rue6AYyMk

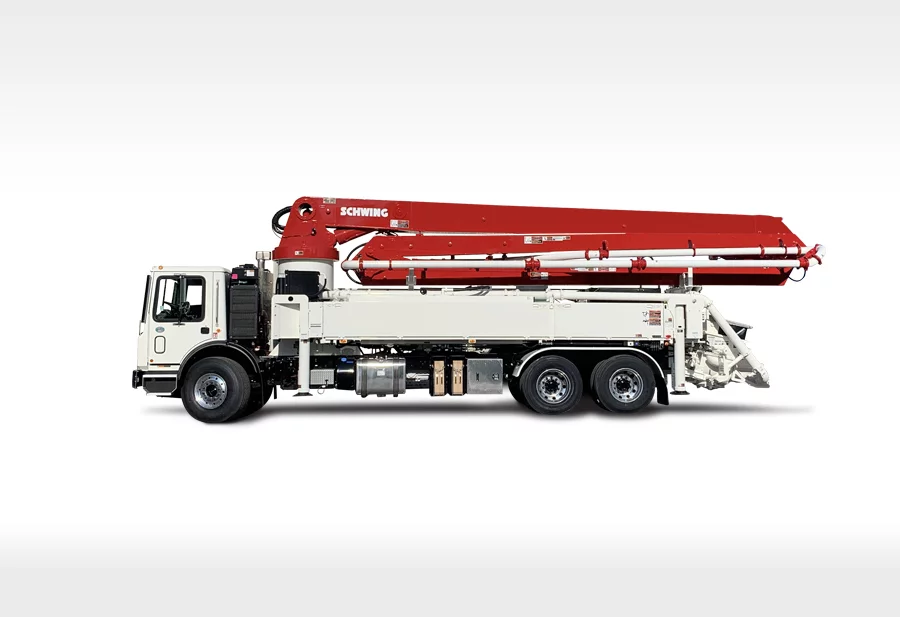

Truck-Mounted Conrete Pump With 4-Section Placing Boom
|
|
U.S. |
Metric |
| Vertical Reach |
127 ft |
38.7 m |
| Horizontal Reach |
113′ 8″ |
34.6 m |
| Below Grade Reach w/ Tip Hose |
89 ft |
27.1 m |
| Pipeline Diameter |
5 in |
125 mm |
| Boom Type / Sections |
Full Articulation, Roll & Fold®/ 4 |
| Boom Rotation |
740 degrees |
| Unfolding Height |
29′ 2″ |
8.9 m |
| Outrigger Type – Front |
Super X Outriggers, Fully Hydraulic,
Extension & Jacking |
| Outrigger Type – Rear |
Hydraulic Extension & Jacking |
| Outrigger Soil Pressure w/o Dunnage (front/rear) |
296/296 psi |
20.4/20.4 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) |
72/72 psi |
5/5 bar |
| Outrigger Width – Front |
26′ |
7.9 m |
| Outrigger Width – Rear |
21′ |
6.5 m |
| Outrigger Length |
30′ 2″ |
9.2 m |
PUMP SPECIFICATIONS- 2525H-6 120/85 MPS
|
|
U.S. |
Metric |
| Theor. Concrete Output |
213 cu yds/h |
163 cu m/h |
| Max. Pressure on Concrete |
1169 psi |
81 bar |
| Max. Strokes Per Minute |
22 |
| Max. Aggregate size |
2.5 in |
63.5 mm |
| Material Cylinder Diameter |
10 in |
254 mm |
| Material Cylinder Stroke |
98 in |
2500 mm |
| Differential Cylinder Diameter |
4.7 in |
120 mm |
| Maximum Oil Flow |
158.5 gal/min |
600 l/min |
| Hydraulic Circuitry Type |
MPS |
| Valve Type |
B Rock |
PUMP SPECIFICATIONS- Detachable Boom
2023-5 130/80 MPS
|
|
U.S. |
Metric |
| Theor. Concrete Output |
208/131 cu yds/h |
159/120 cu m/h |
| Max. Pressure on Concrete |
1007/1621 psi |
70/112 bar** |
| Max. Strokes Per Minute |
32/20 |
| Max. Aggregate size |
2.5 in |
63.5 mm |
| Material Cylinder Diameter |
9 in |
230 mm |
| Material Cylinder Stroke |
79 in |
2007 mm |
| Differential Cylinder Diameter |
5.1 in |
130 mm |
| Maximum Oil Flow |
132.1 gal/min |
500 l/min |
| Hydraulic Circuitry Type |
MPS |
| Valve Type |
M Rock |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice. |
| **2023-5 pumpkits, configured to piston side operation, may not be used with the boom pipeline system. |
