DESCRIPTION
|

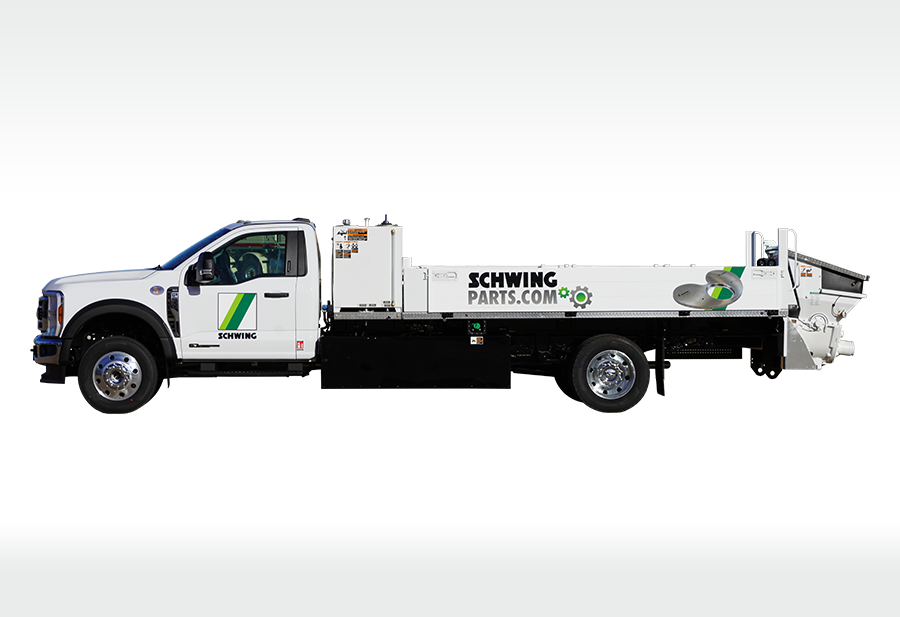

| The SCHWING SPTO 1000 on a Ford F600 4X4: job-site agility meets industrial power. Access any location with a compact truck that requires no CDL, and pour up to 70 cubic yards per hour with legendary SCHWING reliability. Power Beyond Pumping. Precision Beyond Expectation. |
| SPECIFICATIONS |
U.S. |
Metric |
| Concrete Output Per Hour |
70 cu yds |
54 cu m |
| Maximum Pressure on Concrete |
1100 psi |
76 bar |
| Maximum Aggregate Size |
1.5 in |
37 mm |
| Concrete Cylinder Diameter |
7 in |
180 mm |
| Concrete Cylinder Stroke Length |
39 in |
1000 mm |
| Differential Piston/Rod Diameter |
3.54/ 1.96 in |
90/ 50 mm |
| Outlet Diameter |
5 in |
125 mm |
| Concrete Valve Type |
Long Rock™ |
| Shifting Cylinders |
2 |
| Max. Pump Strokes Per Minute |
35 |
| Volume Control |
0 to Maximum |
| Hydraulic System |
Open Loop |
| Main Hydraulic Pump |
A11VO130 |
| Hydraulic Pressure |
4350 psi |
300 bar |
| Hydraulic Tank Capacity |
70 gal |
265 l |
| Remote Control Cable |
100 ft |
30.5 m |
| Truck |
Ford F600 4X4 |
| Truck GVWR |
22,000 lbs |
9979 kg |
| Truck Wet Weight |
17,440 lbs |
7911 kg |
| Truck Cargo Capacity |
4,560 lbs |
2069 kg |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice |
